The controller is the brain of your e-scooter. It takes power from the battery, reads your throttle and brake inputs, and tells the motor what to do. When it fails, the scooter often won't respond at all — no power, no throttle, sometimes no display.
Replacing one is a very doable home repair, but it's less about mechanics and more about wiring. Get the matching and the connections right and it's straightforward. Get them wrong and, at best, it won't work; at worst you can damage the new part. This guide covers both.
First: is the controller actually the problem?
Before buying anything, make sure you're replacing the right part. Controller failure typically looks like:
- The scooter is completely unresponsive despite a charged, healthy battery
- It cut out suddenly while riding and never came back on
- The throttle does nothing, though the display powers up
- Power cuts out intermittently, especially under load
- There was a burning smell, or the scooter got wet before it failed
If the scooter simply won't power on, work through our guide on diagnosing an e-scooter that won't turn on first — it's often the charger or battery rather than the controller, and those are cheaper fixes.
Choosing the right replacement controller
This is where most orders go wrong. Three things must match.
1. Voltage. Your new controller must match your battery voltage exactly — a 36V scooter needs a 36V controller, a 48V scooter needs 48V. This is non-negotiable. Fitting the wrong voltage can damage the controller, the motor, or both.
2. Power rating (wattage). Match it to your motor. A 500W motor needs a controller rated for that output. Under-rating the controller will cause it to run hot and fail early.
3. Connector layout. Even correctly-rated controllers can have different plugs, because manufacturers change components between production batches. Before ordering, photograph your existing controller and all its connectors — this is the single best thing you can do to guarantee you get the right part.
Browse controllers and electrical parts here, and if you're unsure, send us that photo before ordering (details below).
What you'll need
- The correct replacement controller
- Allen keys / screwdrivers to open the deck
- A phone or camera — for photographing the wiring before you touch it
- Cable ties and, ideally, electrical tape
- Optional: a multimeter, if you want to confirm the fault first
Step-by-step replacement
1. Power down completely. Switch the scooter off and unplug the charger. Never work on the wiring with the battery connected — disconnect the battery connector before touching anything else.
2. Open the deck. The controller usually sits inside the footplate or the stem housing. Undo the deck screws and lift the panel carefully — cables often run right underneath it, so don't pull the panel away sharply.
3. Photograph everything before disconnecting. This is the most important step in the whole job. Take clear photos of the controller and every connector from several angles. When you're reconnecting later, these photos are what stop you guessing.

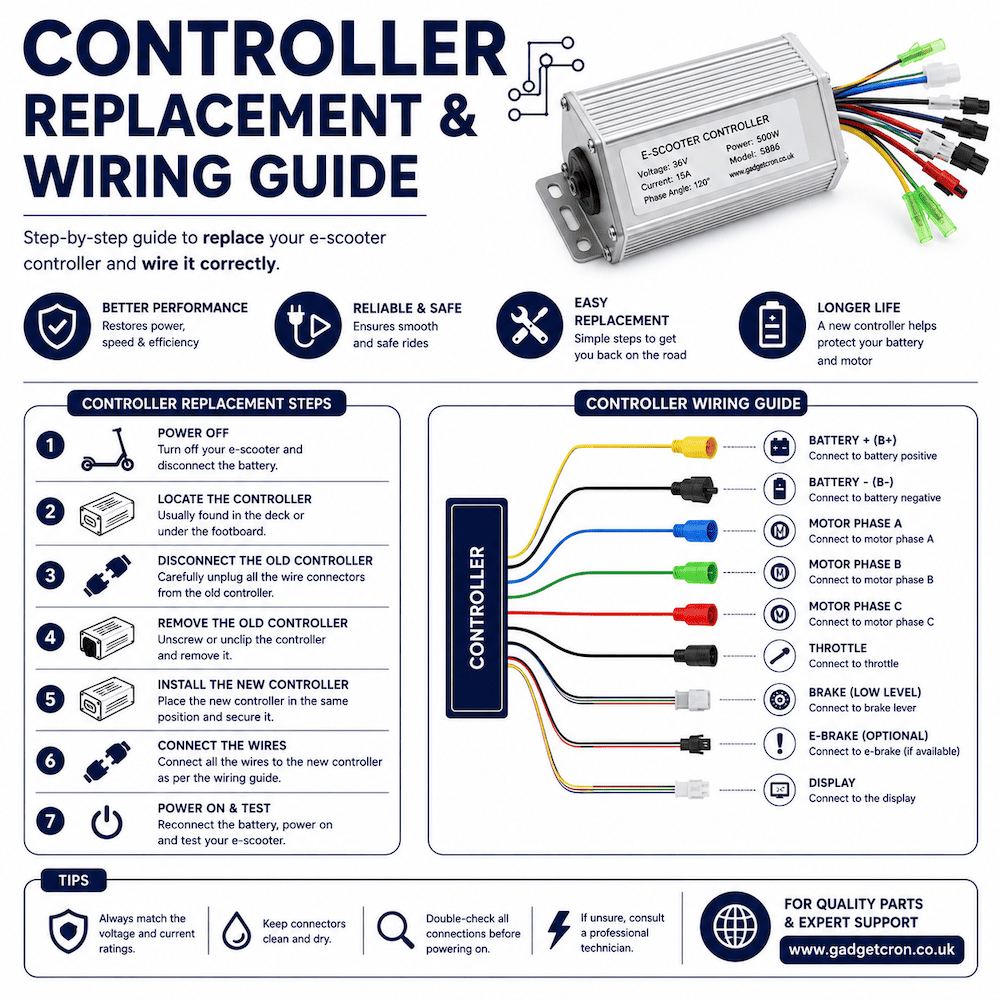

4. Disconnect the connectors one at a time. Work methodically. Most e-scooter connectors are colour-coded and shaped to fit only one way. Typical connections are:
- Battery power — the thick red and black wires
- Motor phase wires — usually three thicker wires (often yellow, green, blue)
- Motor hall sensor — a small multi-pin plug from the motor
- Throttle — a small plug from the handlebar
- Brake lever — for the cut-off switch
- Display / dashboard — the data connection to the screen
- Lights / indicators — if fitted
Pull each one apart by the plug housing, never by the wires themselves.
5. Remove the old controller. Undo any mounting screws or cable ties holding it in place and lift it out. Note how it was oriented and where the cables were routed.
6. Fit the new controller. Position it the same way the old one sat, so the cables reach comfortably without stretching.
7. Reconnect — matching your photos. Plug each connector back in, working from your photos. Colour to colour, plug shape to plug shape. Every connector should click or seat fully; if one feels like it needs forcing, it's the wrong plug. Take your time here — this is the step that determines whether it works.
8. Reconnect the battery last. Once everything else is connected, plug the battery back in.
9. Test before closing up. With the deck still open (and the scooter propped so the wheel is off the ground), power on. Check the display lights up, the throttle spins the wheel, and the brake lever cuts the motor. Testing now means you're not undoing everything if something's not right.
10. Tidy and close. Secure the cables with ties so nothing can rub or catch, make sure no wire is pinched under the deck panel, and refit the screws. Then take a short, slow test ride.
Common wiring mistakes
Not photographing before disconnecting. By far the most common cause of a stalled repair. Ten seconds of photos saves an hour of guessing.
Mismatched voltage. Fitting a controller rated for a different voltage than your battery. Always check the label on both.
Partially seated connectors. A plug that looks connected but isn't fully clicked in causes intermittent faults that are miserable to diagnose. Push each one home firmly.
Forcing a connector that doesn't fit. If a plug won't go in easily, it's the wrong connector — forcing it bends pins. Stop and check the part.
Pinched cables under the deck. Trapping a wire when refitting the panel can cut through insulation over time and cause a short. Route cables clear before screwing down.
Working with the battery connected. Always disconnect the battery first. It protects you and the components.
Not sure which controller you need?
Controllers vary between models and even between production runs of the same model, so if you're not certain, don't guess.
Message us on WhatsApp with your scooter model and a photo of your existing controller and its connectors, and we'll confirm the correct part before you order.
