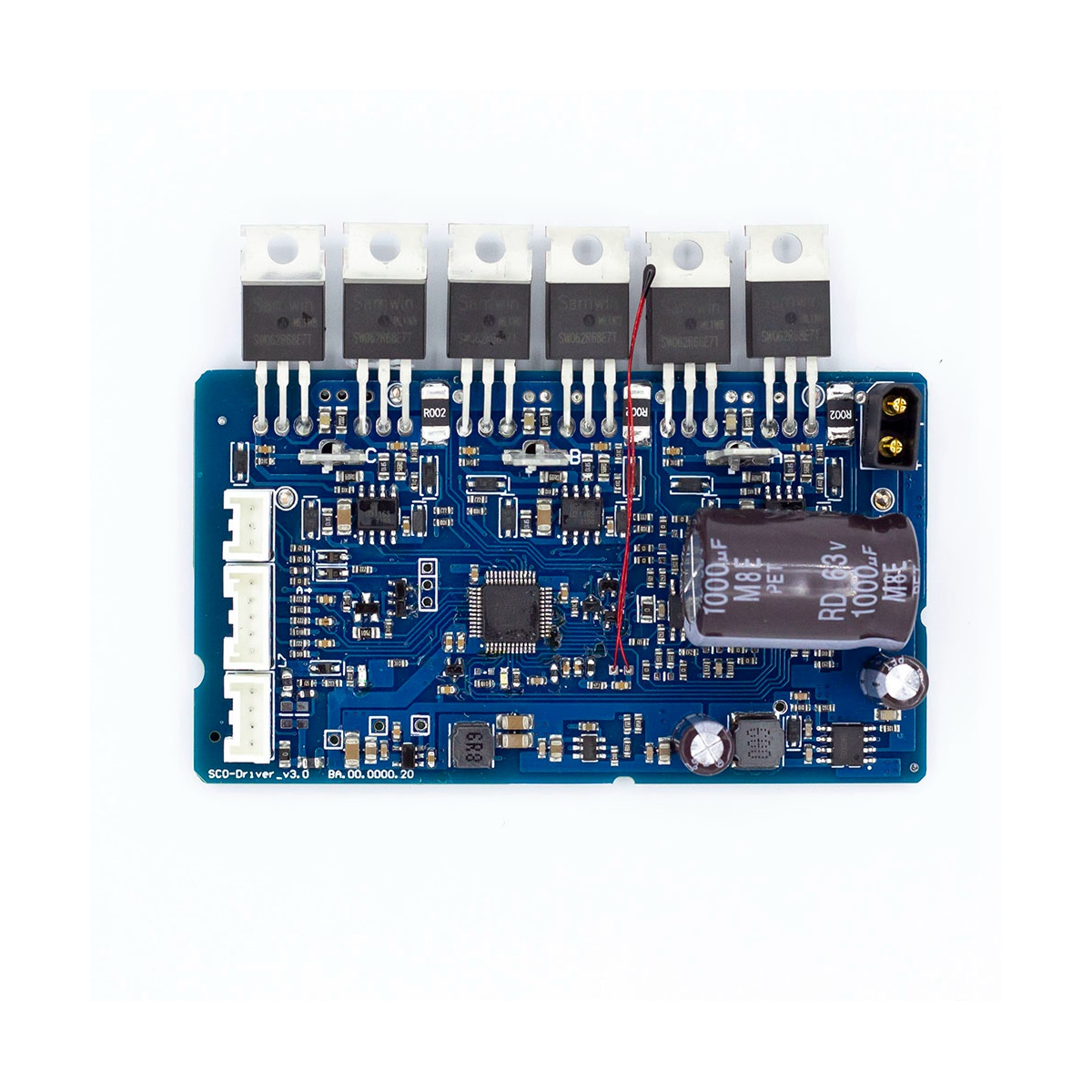

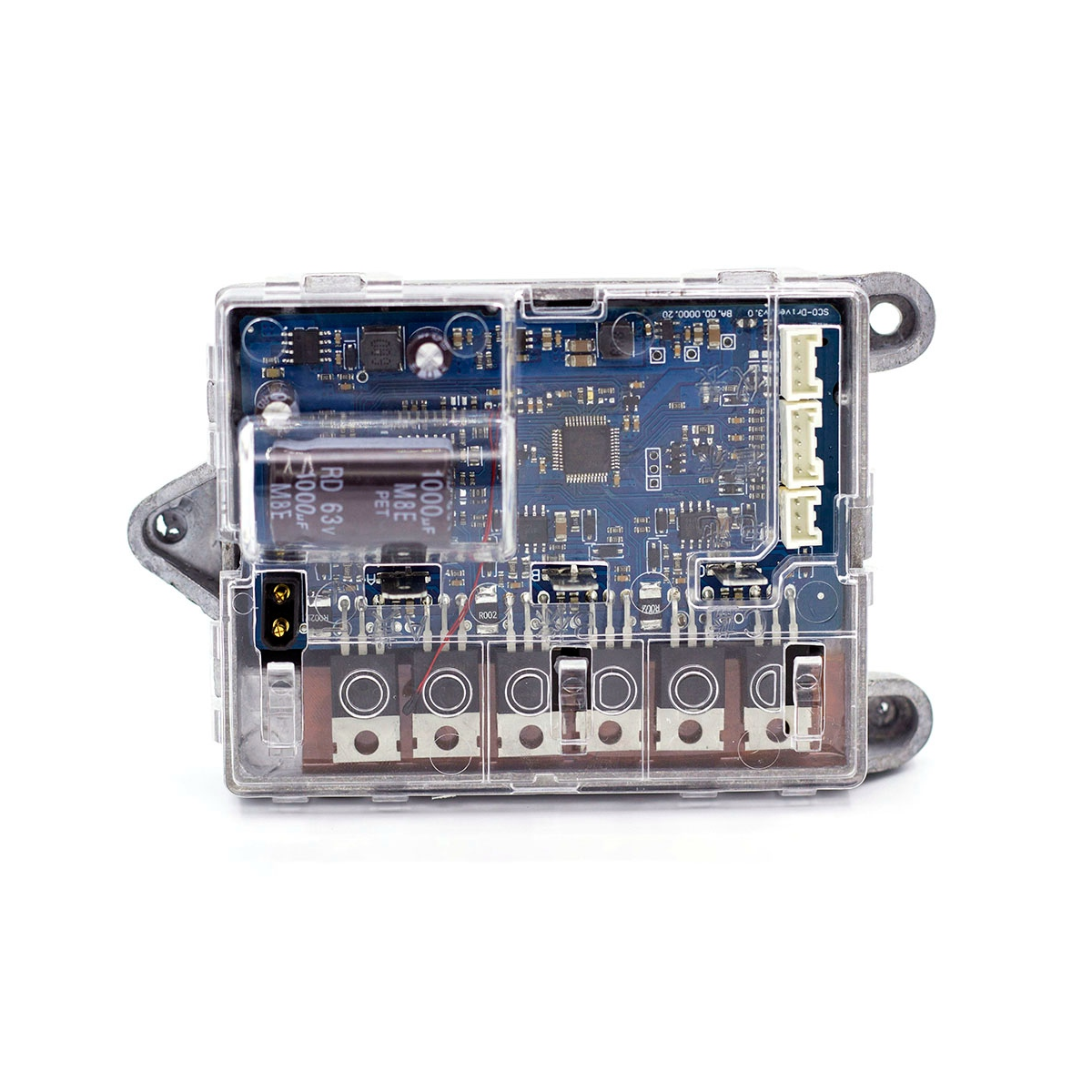

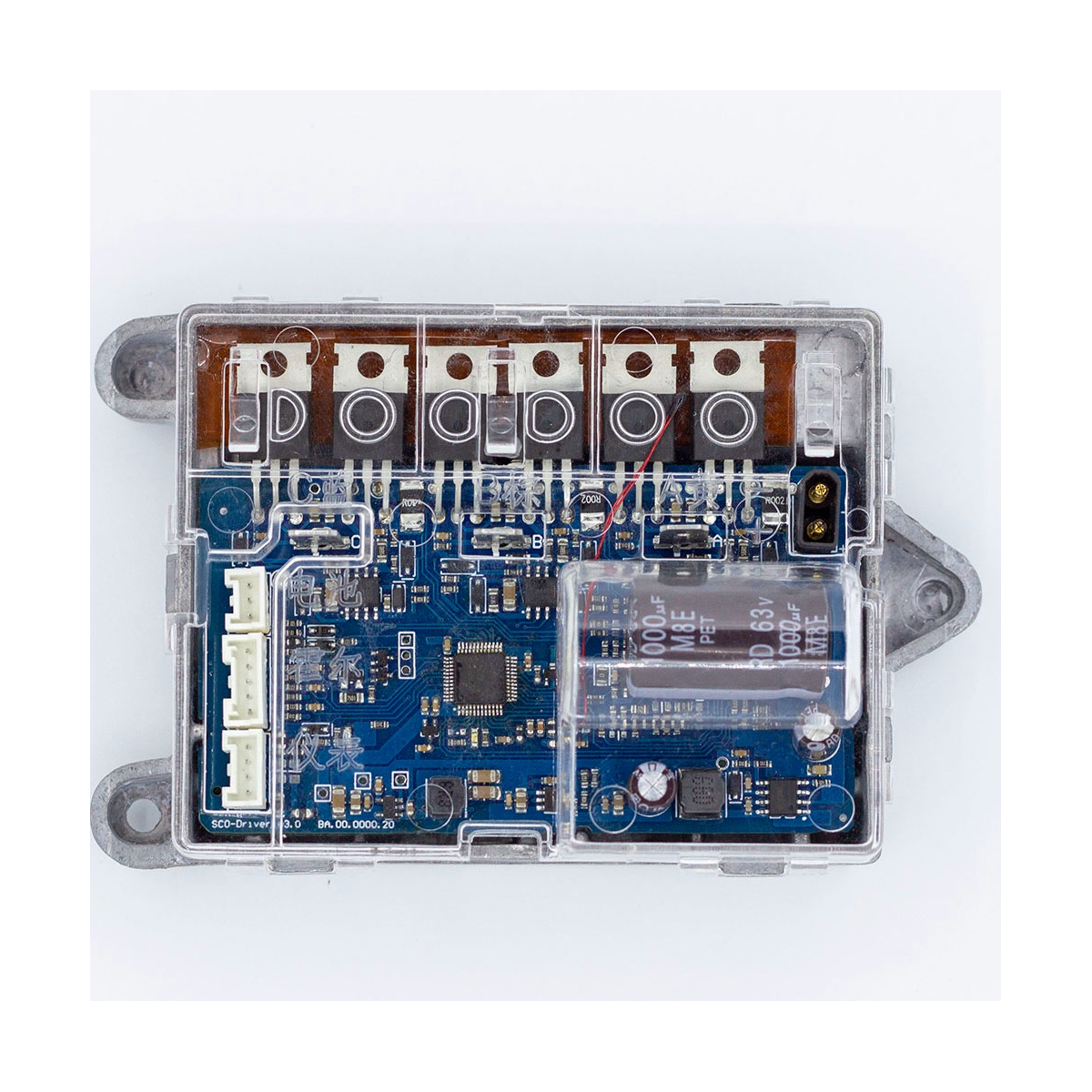

Upgraded V3 motherboard controller Switchboard For Xiaomi M365 Pro/ Pro2 / Essential

Motherboard Controller for Xiaomi Electric Scooters (M365 Pro, Pro 2, Essential, 1S)

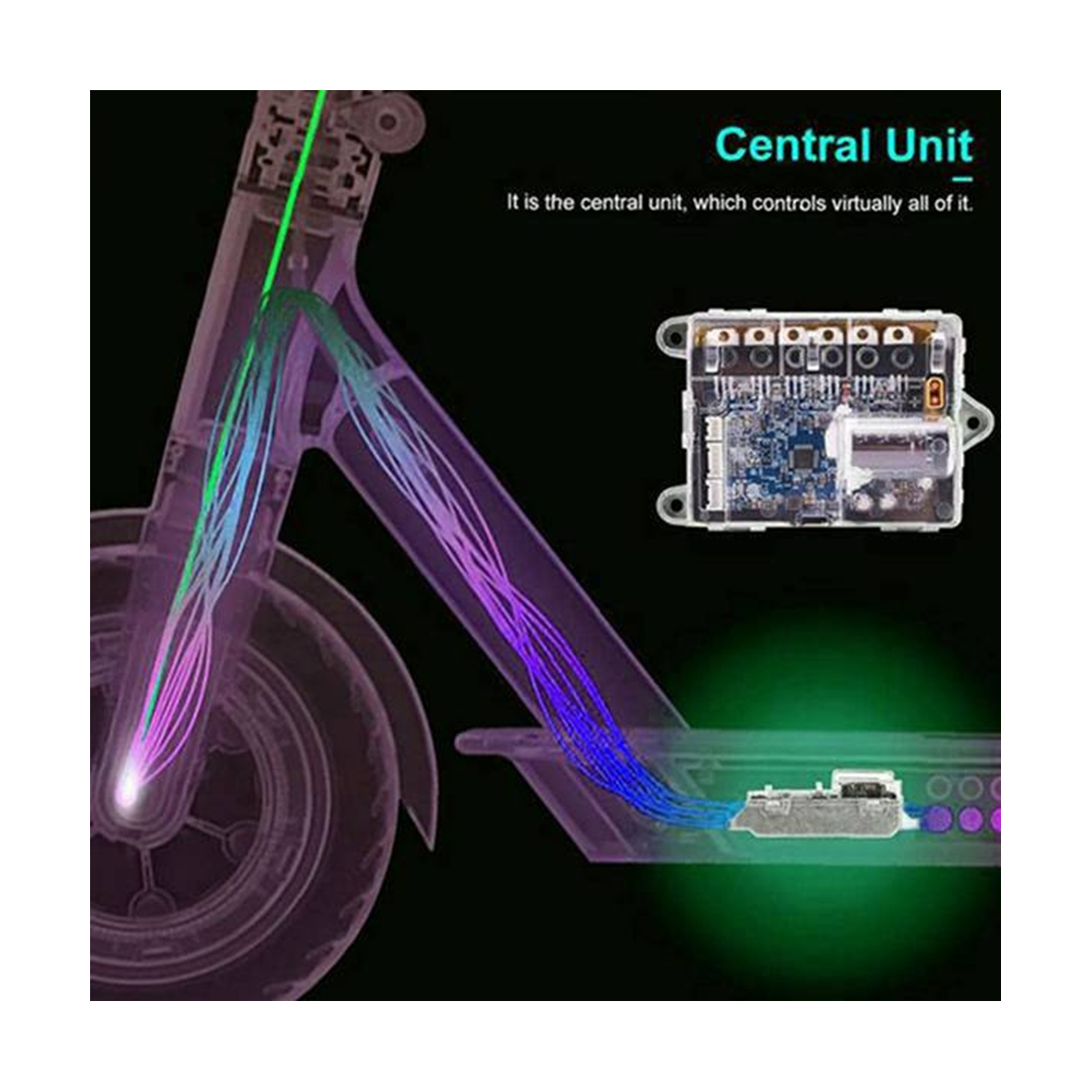

The V3.0 Motherboard Controller is an upgraded and enhanced version designed to significantly improve the performance and reliability of your Xiaomi electric scooter. Acting as the scooter’s central control unit, this component manages power, speed, and safety functions — ensuring optimal performance and protection from electrical faults.

Key Features

• Wide Compatibility: Suitable for Xiaomi M365, M365 Pro, M187 Youth, Essential, 1S, Pro 2, Mi3, Electric Scooter 3 Lite, and Electric Scooter 4 Pro models.
• Upgraded Design: Features reinforced transistors, pure copper-thickened pathways, and high-quality fuses for improved durability and power handling.
• Enhanced Power Management: Copper bars minimize heat build-up and prevent power surges or system failure.
• High Voltage Resistance: The new linear power supply chip supports up to 86V (compared to 60V in earlier versions).
• Lightweight & Compact: Weighs only 100g for effortless installation.
• Modern Look: Sleek black finish for a clean and professional appearance.

Main Functions

• Speed Control: Regulates the impulses sent to the motor based on the throttle signal, ensuring smooth acceleration and controlled speed.
• Energy Management: Optimizes power distribution and battery efficiency for extended ride time.
• Overload & Overheating Protection: Monitors battery and motor temperature, safeguarding the scooter from overheating and electrical stress.
• Fault Diagnostics: Detects and displays error codes on the scooter’s screen, simplifying maintenance and troubleshooting.

When to Replace the Controller

Replace your scooter’s controller if you notice any of the following signs of damage or malfunction, often caused by moisture or wear:

• Unexpected Shutdowns: The scooter powers off suddenly during use or fails to start.
• Throttle Unresponsiveness: Slow or no response when pressing the accelerator.
• Display Errors: Unfamiliar error codes or warning messages appearing without other hardware faults.

How the V3 Controller Differs from the V2 Controller

• Upgraded electrical components for enhanced current stability.
• Pure copper internal design for superior conductivity and reduced heat generation.
• Improved fuse quality to prevent burnout under high power load.
• Supports additional software and hardware modifications.

Package Includes

• 1 × Enhanced V3.0 Controller Main Board

Installation Tips

• Disconnect the scooter battery before replacing the controller.
• Ensure all connectors are properly aligned and secured before reassembly.
• Test the scooter’s functions after installation to confirm correct operation.

Warning

• It is illegal to ride electric scooters on public roads, pavements, or cycle paths. They are intended only for use on private land with the owner’s permission.
